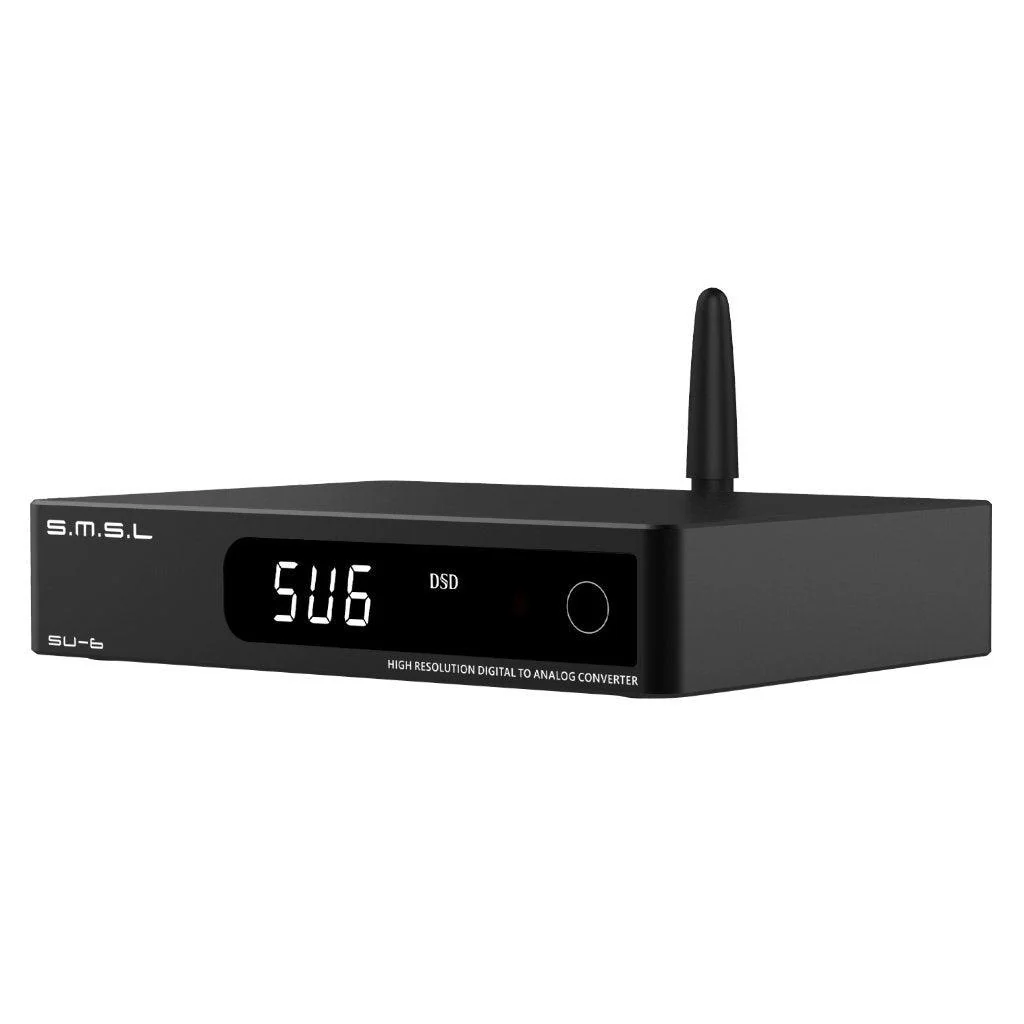

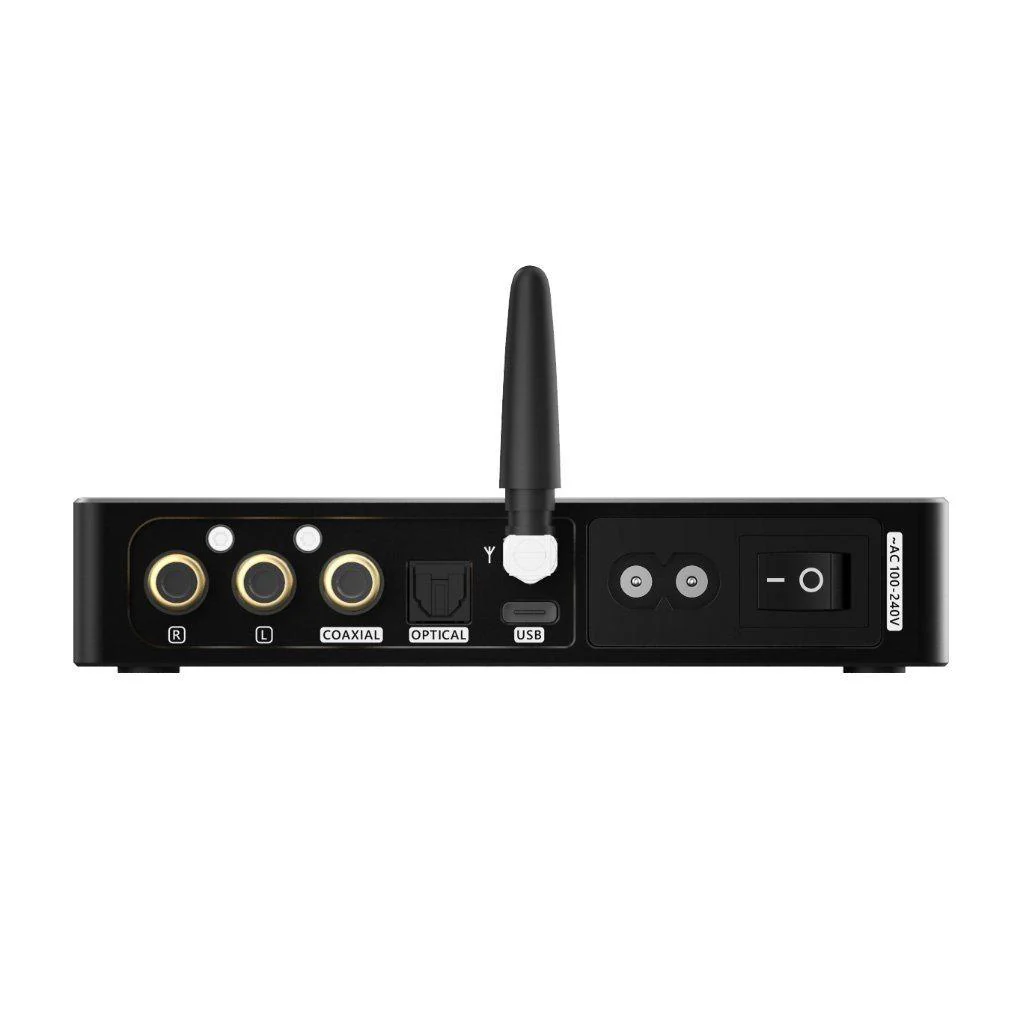

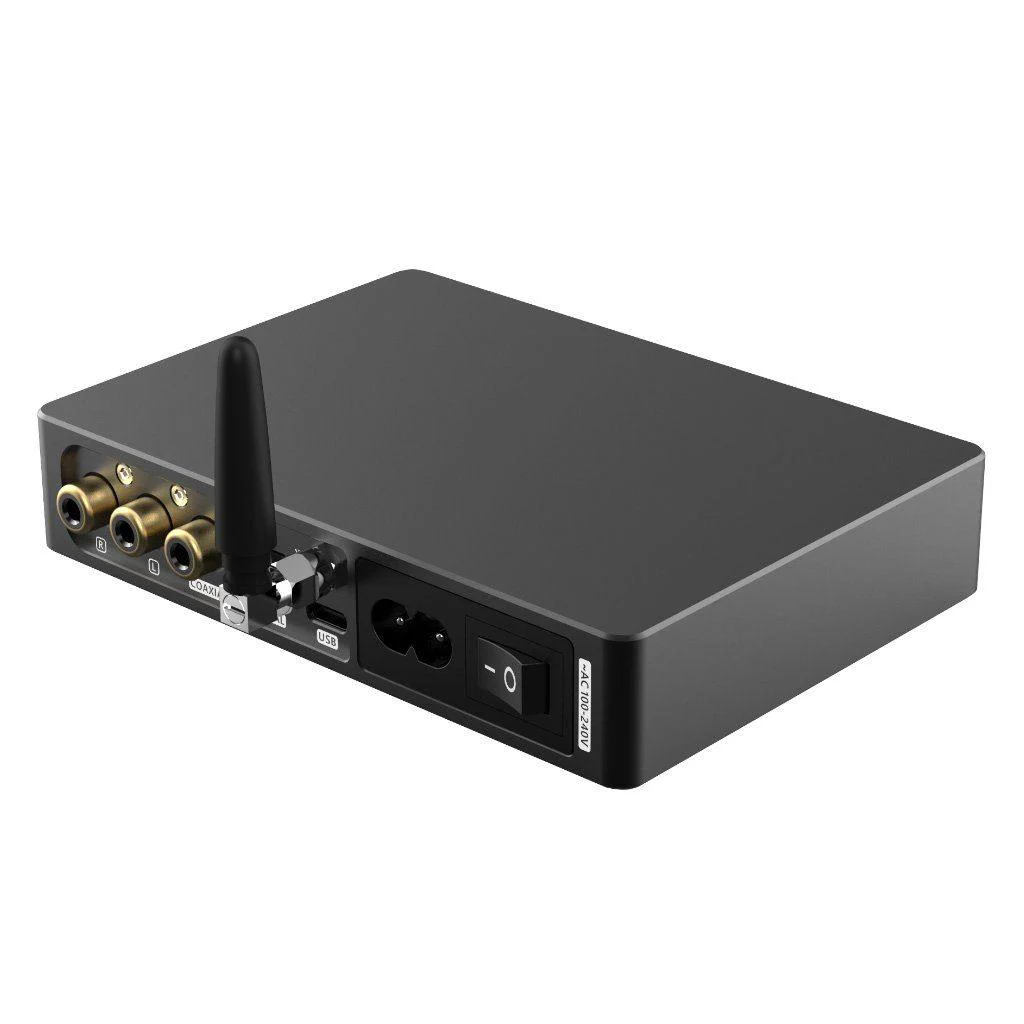

SMSL SU-6 Desktop DAC

The SU-6 Desktop Mini HiFi Audio DAC’s small footprint makes it perfect for desktop use, and includes a remote control and Bluetooth support for when you’re AFK.
Features

- Mini size design, very suitable for desktop use;
- CNC integrated milling process, simple and stylish;
- ESS Technology high-end D/A chip ES9038Q2M;
- Qualcomm latest Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD, SBC, AAC;
- 4x high-end dual op-amp OPA1612 and a large number of audio grade components;
- The 2nd generation XMOS solution supports DoP256 and native DSD512, and PCM supports up to 32bit/768kHz;
- Audio clock processing circuit, greatly reducing the clock jitter;
- All input ports (except Bluetooth) support DSD transmission, coaxial and optical supports DoP64;
- Built-in specially designed low-noise switching power supply;
- Built-in discrete component linear power supply and multiple low-noise power supplies for analog circuits;
- High-quality gold-plated input and output connection terminals;
- Tempered glass display panel which will last forever!
- Japan Audio Association (JAS) Hi-Res certification;
- Equipped with full-function remote control.
Specifications
| Input | USB / Optical / Coaxial / Bluetooth |
| Output | RCA |
| THD+N | 0.0001% (-120dB) |
| Dynamic range | RCA: 125dB |
| SNR | 125dB |
| Output impedance | <10 Ω |
| USB transmission | Asynchonization |
| USB compatibility | Windows 7/8/8.1/10, Max OSX, Linux |
| Bit depth |
USB: 1-bit, 16-32bit Optical/coaxial: 1-bit, 16-24bit |
| Sampling rate, USB |
PCM: 44.1-768kHz DSD: 2.9224-22.5792MHz |
| Sampling rate, Optical/Coaxial |
PCM: 44.1-768kHz DSD: DSD64 (DoP) |
| Bluetooth specification | BT 5.0 (support SBC, AAC, aptX, aptX HD) |
| Power consumption | 5W |
| Standby power | <0.5W |
| Size | 140 x 28 x 105mm ( W x H x D) |
| Weight | 0.35kg |
